Webhook Integration Documentation

Overview

This feature allows you to configure a webhook endpoint to receive activity data events. Once configured, Corsano will deliver real‑time data payloads to your specified endpoint.

Gather Your Connection Details

The following details are typically required before enabling the webhook:

Endpoint URL: Public, valid https:// address you control.
Verification secret: Shared secret for HMAC signature validation.

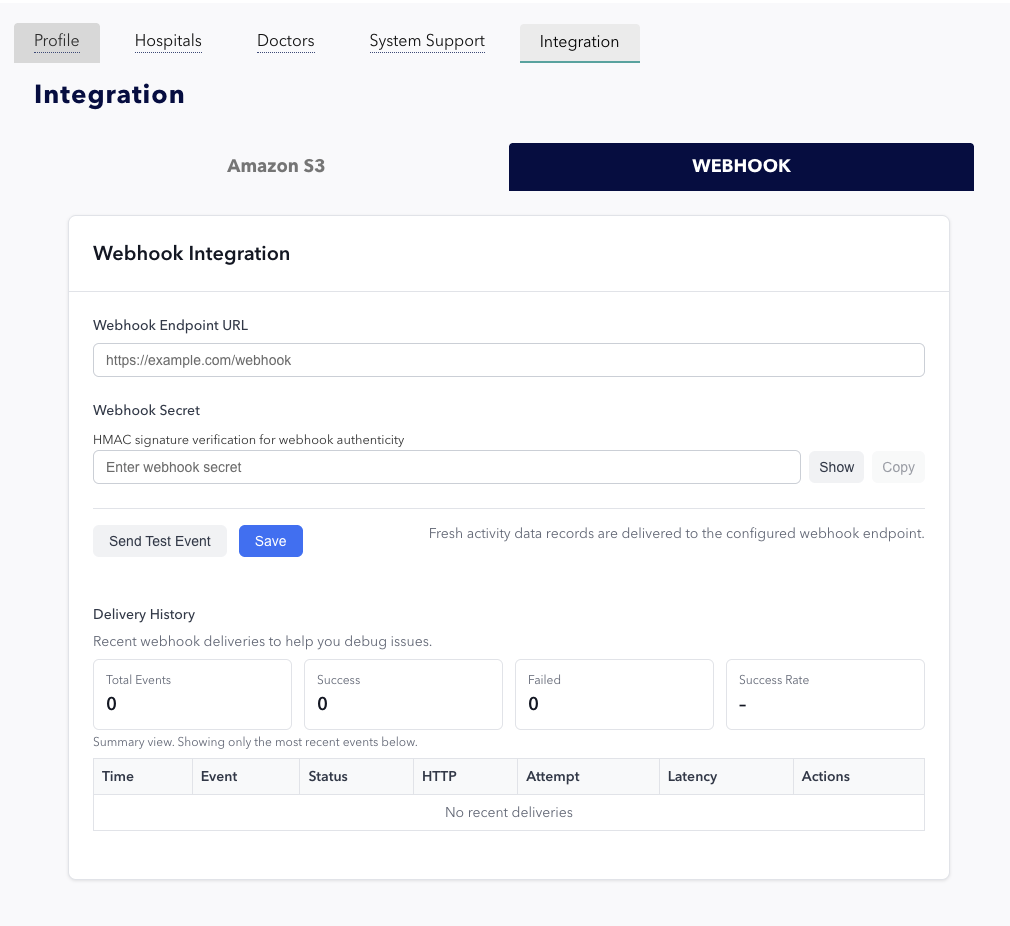

You can apply these details by locaing to the Setting page, open the Integration tab and click WEBHOOK. You will see the following page:

Test and Save Webhook configuration

You can trigger a test event by clicking the "Send Test Event" button. This will dispatch a payload containing { event_type: "test" } to the configured endpoint. Verify on your system that the event has been received and processed as expected.

Click the "Save" button to persist the endpoint configuration and secret.

Toggle Webhook for Each Study

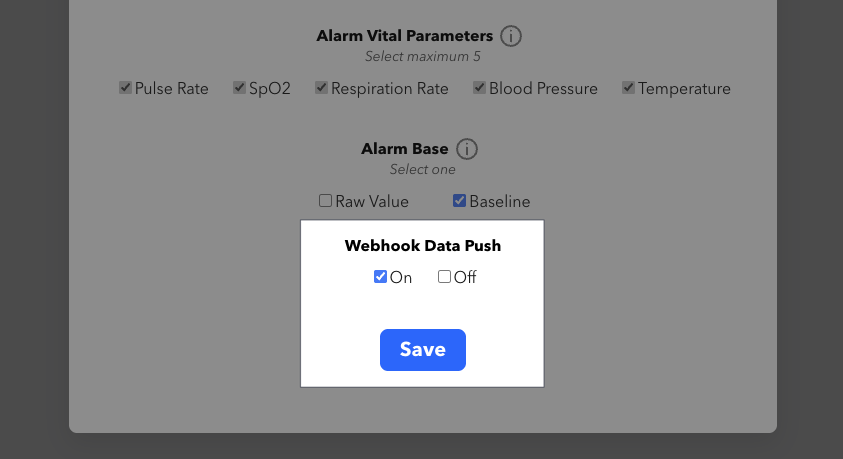

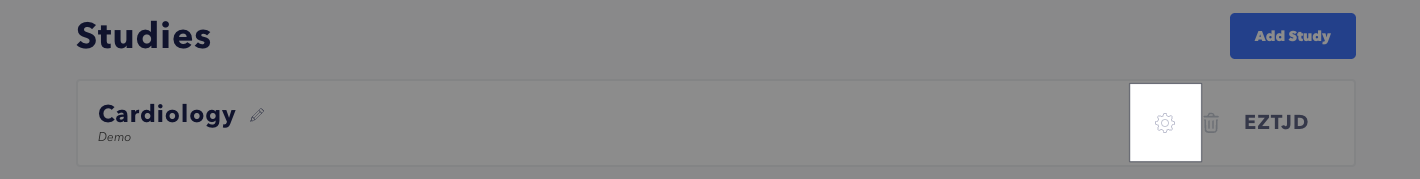

In the settings modal for each study, you can enable or disable the webhook. When Webhook Data Push is disabled, no data associated with that study will be forwarded.

Delivery History

Displays recent webhook delivery attempts for debugging.

Metrics

Total Events: Number of webhook events attempted.
Success: Number of successful deliveries.
Failed: Number of failed attempts. Full logs for failed requests will be displayed.
Success Rate: Ratio of successes to total attempts.

Event Log Table

Each entry includes:

Time: When delivery occurred.
Event: Event type.
Status: Delivery status.
HTTP: Response code from your server.
Attempt: Retry count.
Latency: Round‑trip delivery time.
Actions: Additional diagnostic options (if available).

If no events have been delivered, the table displays an empty state.

Delivery Workflow

The Corsano bracelet constantly streams data to the mobile app, the app forwards it to our cloud service, and as soon as the cloud receives the it, it will forward the data to your service.

Recommendations

Corsano sends data using the application/json format, so ensure your endpoint validates the corresponding Content-Type header.
Return a 200 or 204 status code only after the payload has been successfully processed. These status codes indicate that the data was delivered and handled correctly.
Return a 4xx or 5xx status code to signal a processing failure on your server.
Monitor the failure count to identify connectivity issues or endpoint-side errors.

Troubleshooting

No deliveries shown: Ensure endpoint and secret are saved.
Consistent failures: Check network availability and endpoint logs.
Signature mismatch: Verify that your HMAC logic uses the exact secret and payload.

Example Payload

{
    "user_uuid": "e962******2c5c",
    "data": [
        [
            {
                "timestamp": "1763562121000",
                "bpm": "79",
                "bpm_q": "2",
                "last_steps": "0",
                "activity_type": "7",
                "activity_count": "25",
                "spo2": "0",
                "spo2_q": "0",
                "energy_exp": "1196",
                "respiration_rate": "22",
                "pha": "10",
                "pha_q": "10",
                "resp_q": "1",
                "wearing": "4",
                "battery": "37",
                "gait_asymmetry": "0",
                "gait_speed": "0",
                "gait_var": "0",
                "cardiac_arrest": "1",
                "nibp_systolic": "0",
                "nibp_diastolic": "0",
                "nibp_systolic_long_term": "0",
                "nibp_diastolic_long_term": "0",
                "nibp_systolic_combine": "0",
                "nibp_diastolic_combine": "0",
                "is_charging": "0",
                "timezone": "+01:00"
            },
            {
                "timestamp": "1763562124000",
                "bpm": "0",
                "bpm_q": "0",
                "last_steps": "0",
                "activity_type": "0",
                "activity_count": "0",
                "spo2": "0",
                "spo2_q": "0",
                "energy_exp": "0",
                "pha": "0",
                "pha_q": "0",
                "resp_q": "0",
                "wearing": "4",
                "battery": "37",
                "gait_asymmetry": "0",
                "gait_speed": "0",
                "gait_var": "0",
                "cardiac_arrest": "0",
                "nibp_systolic": "122",
                "nibp_diastolic": "72",
                "nibp_systolic_long_term": "120",
                "nibp_diastolic_long_term": "57",
                "nibp_systolic_combine": "121",
                "nibp_diastolic_combine": "64",
                "is_charging": "0",
                "timezone": "+01:00"
            }
        ]
    ]
}

Data Dictionary

Activity event

Top-Level

Field	Type	Required	Description
`study`	string	yes	Study identifier.
`type`	string	yes	Event type. Expected: `"activity"`.
`data`	object	yes	Contains user identifier + activity samples.

data Object

Field	Type	Required	Description
`user_uuid`	string (UUID)	yes	Unique ID for the user.
`data`	array	yes	Array of sessions/batches. Each item is an array of samples.

Activity Sample

Field	Type	Required	Meaning
`timestamp`	number	yes	Unix ms.
`bpm`	number	yes	Heart rate.
`bpm_q`	number	yes	Heart rate quality (0–4).
`last_steps`	number	yes	Step count since last sample.
`activity_type`	number	yes	Activity code.
`activity_count`	number	yes	Activity intensity.
`spo2`	number	yes	SpO2 (%) or 0 if invalid.
`spo2_q`	number	yes	SpO2 quality (0–4, 103, 104, 105).
`energy_exp`	number	yes	Energy expenditure (device-specific units).
`respiration_rate`	number	yes	Respiration rate per minute.
`resp_q`	number	yes	Respiration quality.
`pha`	number	yes	PHA value.
`pha_q`	number	yes	PHA quality.
`wearing`	number	yes	Wearing state (0:not wearing, 1–3:reserved, 4:wearing for sure).
`battery`	number	yes	Battery percentage.
`gait_asymmetry`	number	yes	Asymmetry score.
`gait_speed`	number	yes	Speed.
`gait_var`	number	yes	Variability.
`cardiac_arrest`	number	yes	0/1/2.
`nibp_systolic`	number	yes	Systolic blood pressure.
`nibp_diastolic`	number	yes	Diastolic blood pressure.
`nibp_systolic_long_term`	number	yes	Long-term systolic blood pressure.
`nibp_diastolic_long_term`	number	yes	Long-term diastolic blood pressure.
`nibp_systolic_combine`	number	yes	Combined systolic blood pressure.
`nibp_diastolic_combine`	number	yes	Combined diastolic blood pressure.
`is_charging`	boolean	yes	Charging flag.
`timezone`	string	yes	ISO-8601 offset (e.g. `+01:00`).
`skin_proximity`	number	optional	Present on iOS; Android may omits it.
`speed`	number	optional	Present on iOS; Android may omits it.

Temperature event

Top-level

Field	Type	Required	Notes
`study`	string	yes	e.g., `"EZTJD"`
`type`	string	yes	must be `"temperature"`
`data`	object	yes	container

Data Object

Field	Type	Required
`user_uuid`	string (UUID)	yes
`data`	array	yes — array of batches (each batch = array of temperature samples)

Temperature Data

Field	Type	Required	Meaning
`timestamp`	number	yes	Unix ms
`temp_sk1`	number	yes	Core body temp
`temp_sk2`	number or null	no	Skin temperature during sleep
`temp_amb`	number or null	no	Reserved
`timezone`	string	yes	ISO-8601 offset (`+01:00`)

Please note that the webhook functionality is still under active development; contact devsupport@corsano.com if you encounter any technical issues or unexpected behavior.
