SpO2 spot measurement

The Corsano SDK introduces a new feature for saving SpO₂ spot measurements performed on patients. Each measurement includes a precise timestamp and value, ensuring accurate time-based tracking and facilitating robust data comparison across measurements.

Requirements​

Only available for B2 from FW 7.32

From SDK 1.1.20

Implementation​

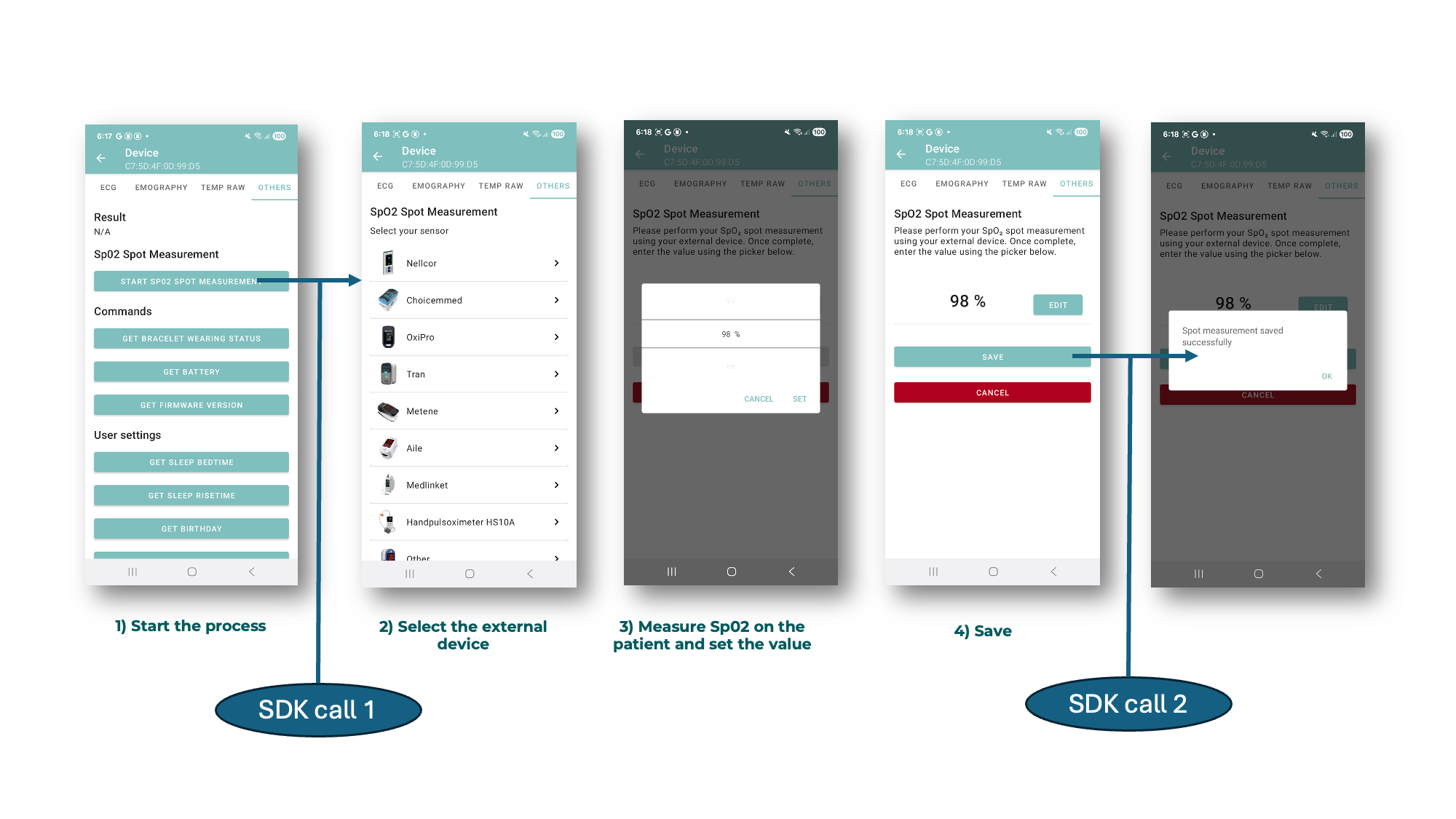

The Sample App has been updated with directions and example code to assist in implementing SpO₂ spot measurements. Follow these steps to integrate the feature:

Spot Measurement

 

SDK call 1: start of the measurement​

    val result = DataSdk.getInstance().getManager().getSpotMeasurementManager()
        .initSpotMeasurement(bleDevice, Date().time)

SDK call 2: save measurement​

val result = dataSdkManager.getSpotMeasurementManager()
    .save(bleDevice, spo2Value, now, externalDevice)

Sample code available in the classes

DataOthersFragment DataOthersSpotFragment2

Function return structure:

open class SpotMeasurementDB : RealmObject() {
    @PrimaryKey
    var startTimestamp: Long = 0L
    var endTimestamp: Long? = null
    var startDate: String = ""
    var endDate: String? = null
    var value: Float? = null
    var deviceName: String? = null
    var synced: Boolean = false
